| Brand | MSI |
|---|---|
| Series | PRO |

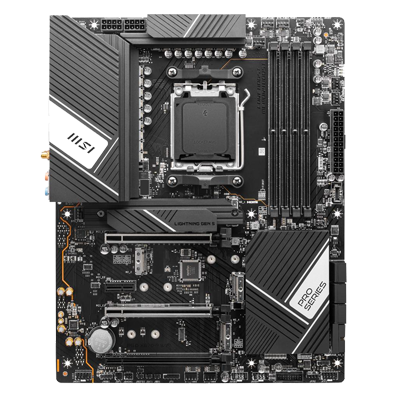

| Model | MSI X670E Gaming Plus |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD X670 |
|---|
| Number of Memory Slots | 4x DDR5, Maximum Memory Capacity 128GB |
|---|---|
| Memory Standard | DDR5 4800 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 3x PCI-E x16 slot Supports x16/x4/x2 PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E3 PCIe 4.0 supports up to x4 (From CPU) PCI_E4 PCIe 4.0 supports up to x2 (From Chipset) |
|---|---|
| PCI Express x16 | 3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From CPU) PCI_E4 PCIe 4.0 supports up to x2 (From Chipset) |
| PCI Express x1 | PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) |
| Audio Chipset | Realtek® ALC4080 Codec |
|---|---|
| Audio Channels | 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| LAN Chipset | Realtek® RTL8125BG 2.5G LAN |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
| Other Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 243.84mmx304.8mm |
| Windows 11 | Support for Windows® 11 64-bit, Windows® 10 64-bit |
|---|
| Features | Supports AMD Ryzen™ 7000 Series Desktop Processors Supports DDR5 Memory Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience |
|---|
